Workflows

Don’t want to use the Workflows bundled with Ftrack? Fear not: it’s easy to clone an existing one to build upon or create your own custom Workflow from scratch.



  How to customise your workflow

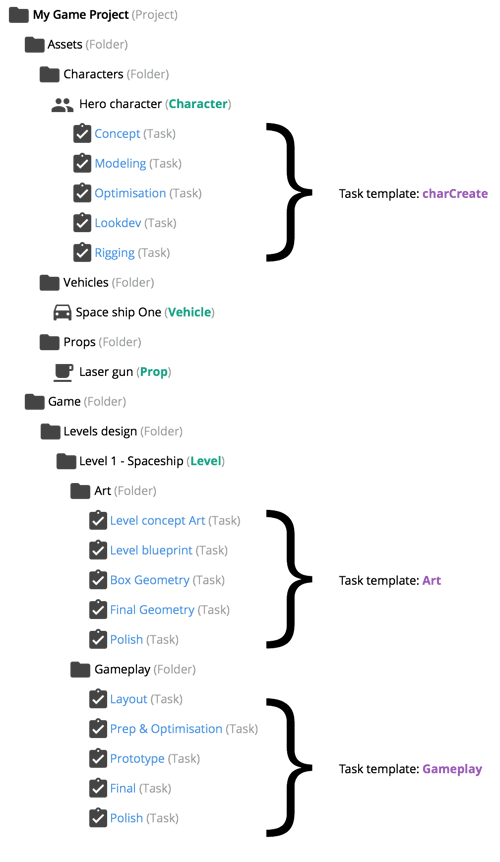

This is the layout vision for your video game project hierarchy. Items highlighted in green are new custom entities that you need to create, while items highlighted in purple are task templates that you need to set up – these will make it easier for your department leads to create new sets of tasks for the artists. For your new workflow, you might also need to create some new tasks types that are not available “out of the box”.



Why don’t I just use generic folders instead of creating new custom entities?

Firstly, you may want a swanky new icon for your custom entities that distinguish them from other entities. Secondly, you may want to be able to track status and priority as well as linking custom attributes on these custom entities, and that isn’t possible with the generic default folders that come “out of the box”. You may also want your new entities to be easily accessible via the API for any automation that you set up.

Alternatively, instead of creating four new custom entities, you could create just one, but make it possible to have different types associated. However, the problem with this approach is that you would be restricted to just one icon for all different types, and the same custom attributes would be visible on all types. Read more creating custom entities here.

For Character, Vehicle and Prop entities use the statuses Not Started, In Progress, Pending Review and Approved. For Level, use a different set of statuses: Not Started, In Progress, Art Done, Gameplay Done, Complete. You should also enable all four entities to set priority.



  Create custom entities

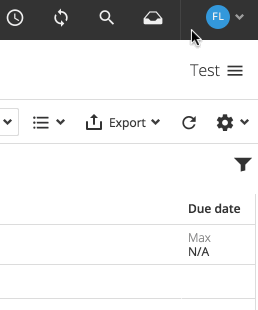

Let's create our new custom entities. If you have the correct permissions you should see System Settings in your user menu. Click on System Settings to go into settings.

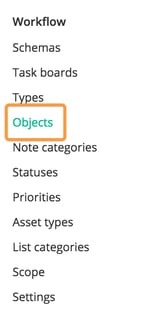

Click on Objects under the Workflow topic.

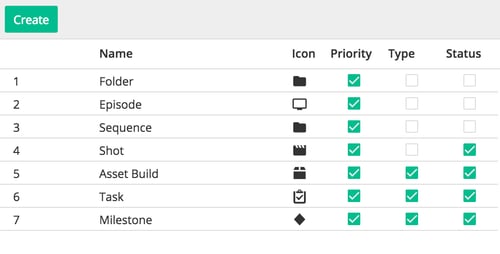

Under Objects you will see the default object/entity types in ftrack, unless you’ve already created any custom entities.

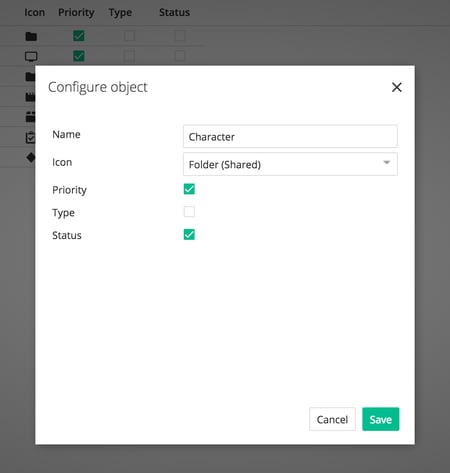

Click on Create to add the new Entity types needed for our Workflow.

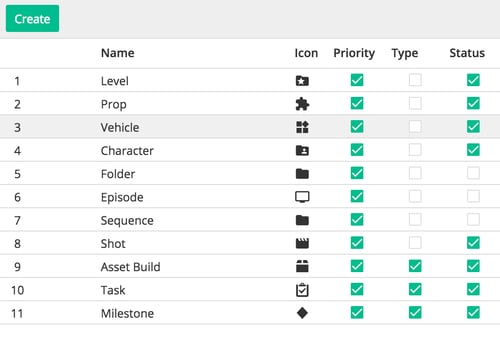

All four custom entities created:



 Create custom statuses

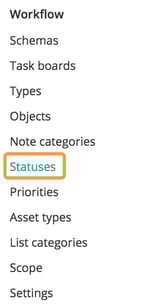

As mentioned above we also need to create new statuses that we will use in our new Workflow. Not Started, In Progress, Pending Review, Approved, Art Done, Gameplay Done and Complete. Some of these statuses will already exist. Lets dive into statuses.

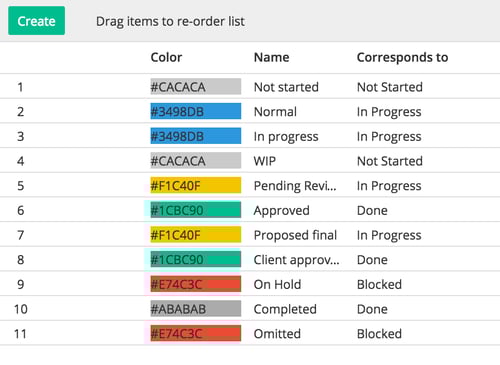

Under Statuses you will see the default Status types in Ftrack, unless you’ve already create any custom statuses. Statuses are shared among all different types of entities.



It looks like we only need to create two new Statuses, Art Done and Gameplay Done.
Click on Create to create a new Status.

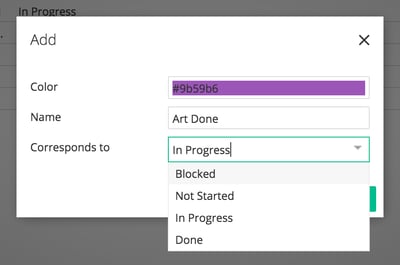

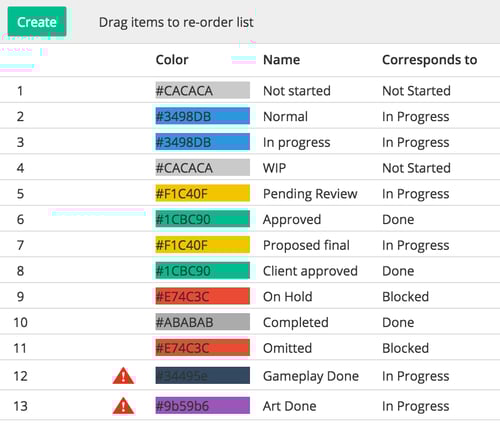

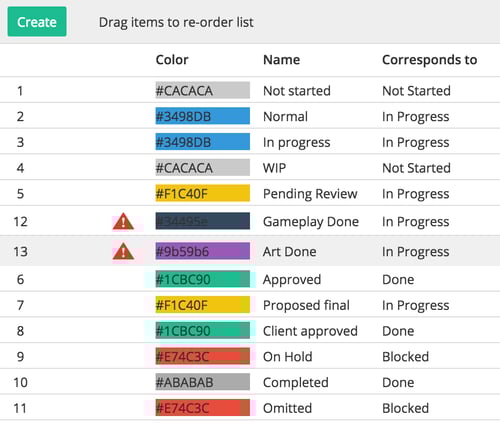

A Status will always correspond to a system state. These are Blocked, Not Started, In Progress and Done – this mapping is used internally for progress reports etc. Learn more. In this case we are mapping our new Statuses to In Progress. Below you can see the new Statuses have been created:



Next, let’s re-arrange the order of our new Statuses so they match the Approval process.



Here, Ftrack is warning us that our new Statuses are not added to any Workflow yet and thus are not available for end users. In a few steps we will add our Statuses to our new video game workflow.



 Create new task types

Next, we’ll add some new task types. The entity Task already exists, so we only need to add the unique types to this entity.

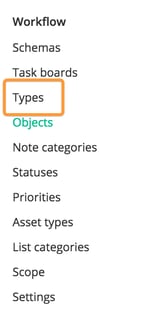

Click on Types.

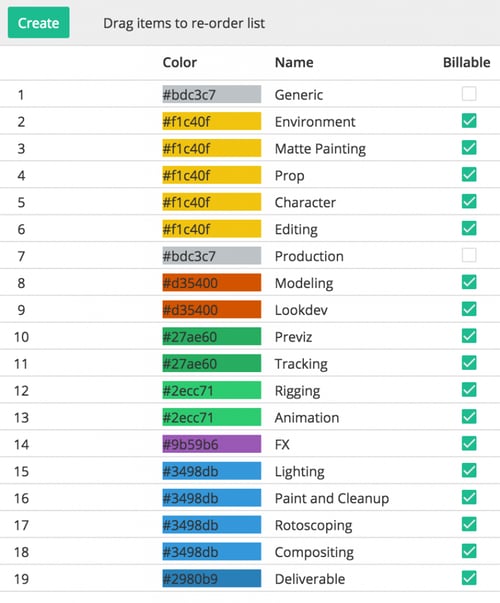

Under Types you will see the default Types in Ftrack, unless you’ve already create any custom types. Types are shared among all different types of entities (if they support types – see above).

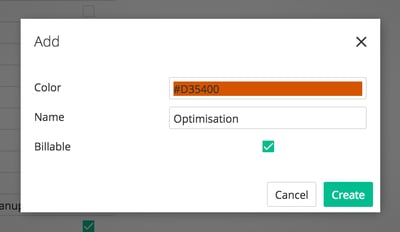

Click on Create to create a new Type.

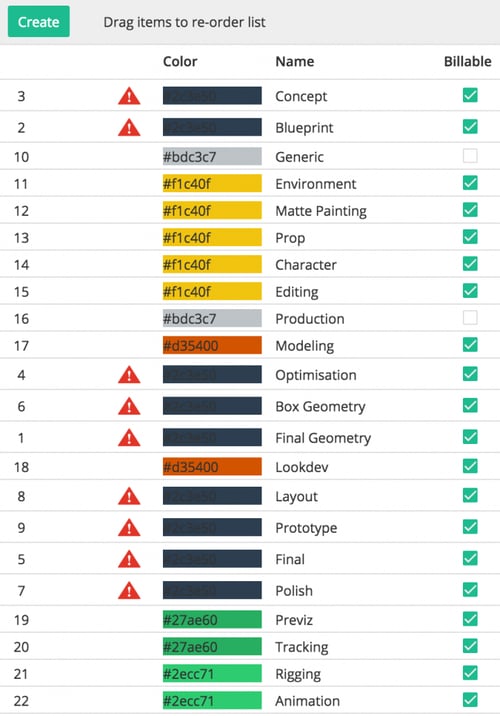

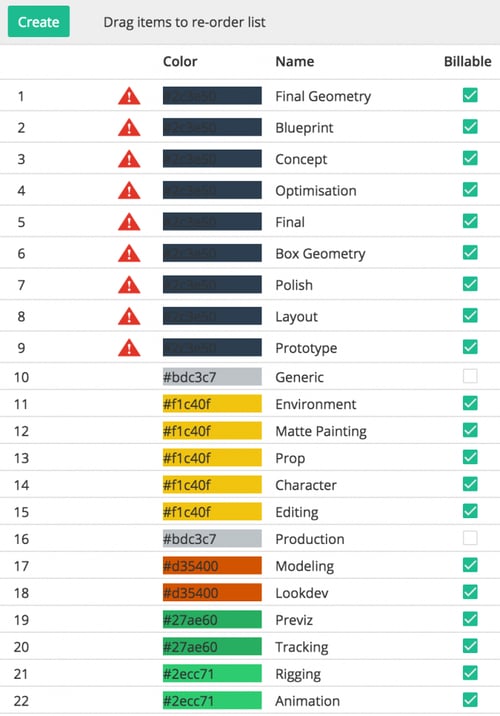

Here you can see all the task Types created. We have kept the same colour for each Task type for clarity, but you could have a unique color per task type to distinguish between them if you so wish. Note: You don’t always need to create a new Type for each task; sometimes you can use an existing Type, e.g. Modeling. When you create task related to Modeling, you use the Type Modeling, but you give it another display name, like Box Geometry or Final Geometry etc. In this case we have created unique Types for the purposes of clarity.



Lets re-arrange the order of our new Task types so they match our Pipeline steps. Just as it did in the example above, Ftrack is warning us that our new Task types are not added to any Workflow yet, and thus are not available for end users.



 Bring it together

Now that we’ve set everything up, we can start preparing our Workflow.
Further reading: In-depth documentation on setting up Workflows

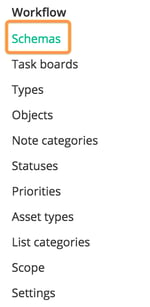

Click on Schemas.

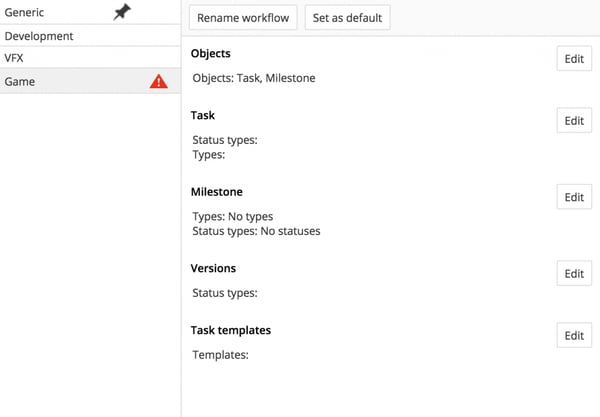

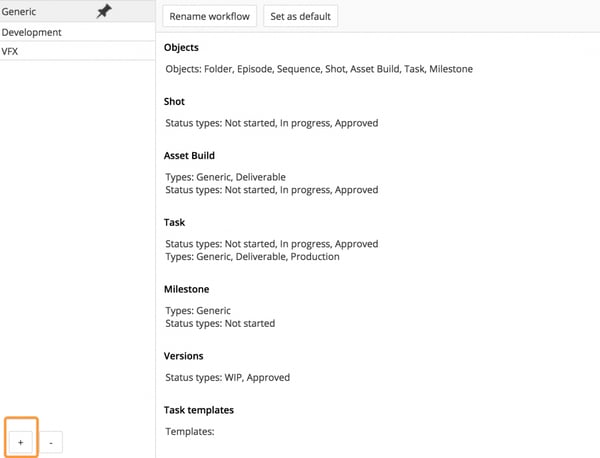

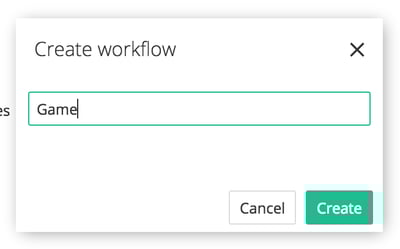

Under Schemas you will see the default Workflows in Ftrack, unless you’ve already created any custom Workflows. Click on the + at the bottom of the column to create a new Workflow.



Lets add Objects/Entities, Statuses, Task types, and Task templates.
Click on Edit next to Objects.



Note that Task and Milestones are default Entities that can’t be removed. Select the Entities you want to add.

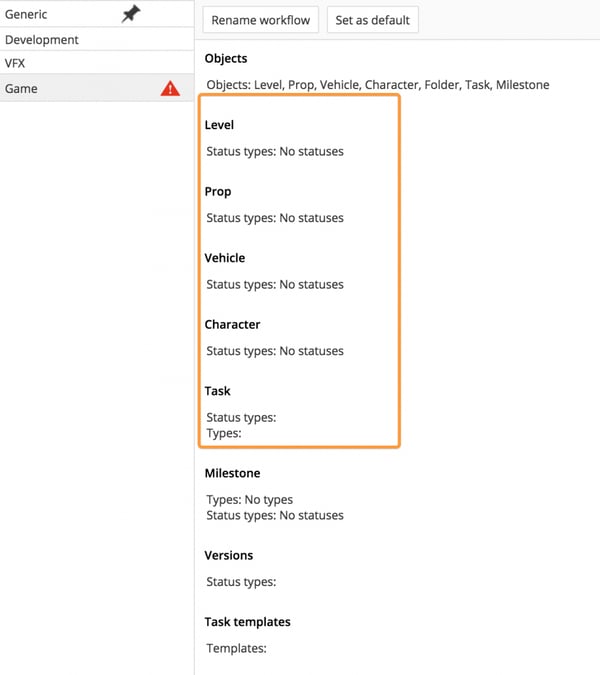

Let’s edit each of the new Entities to add status types and add Task Types to our Tasks.

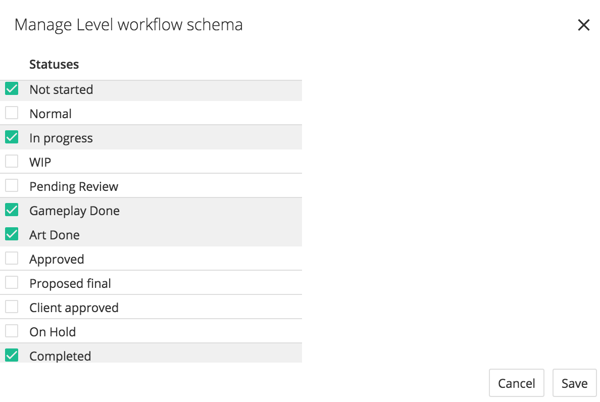

Click on edit next to Level.
Add the statuses we listed above – Not Started, In Progress, Art Done, Gameplay Done, Complete

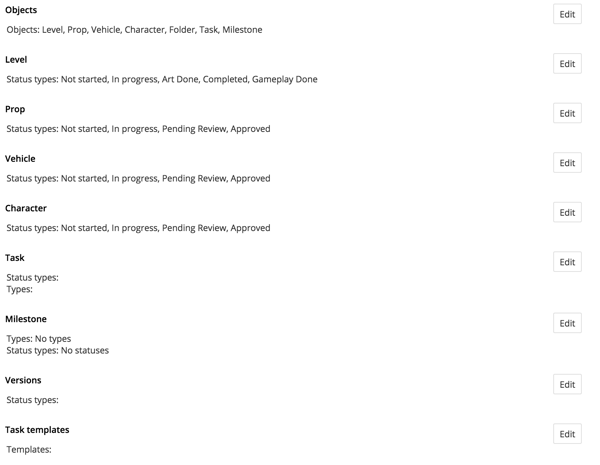

Do the same for Prop, Vehicle and Character.





Lets add our new Task types to Tasks.

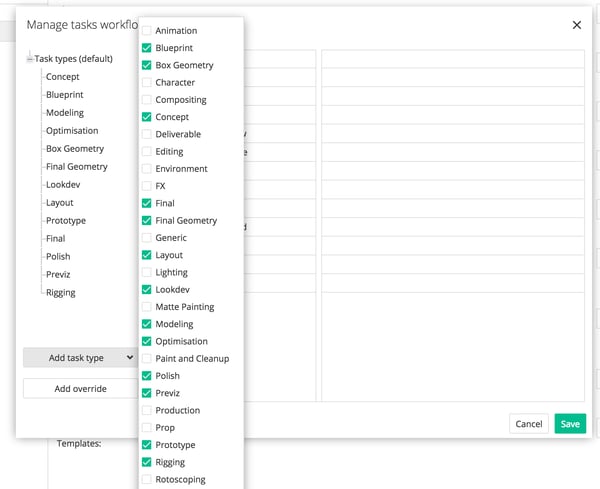

Click on edit next to Tasks and click on “Add task type”.



Let’s add Statuses, or the approval process, to our tasks.

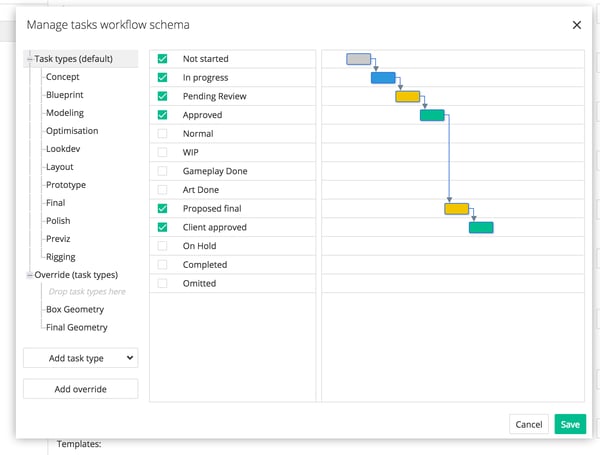

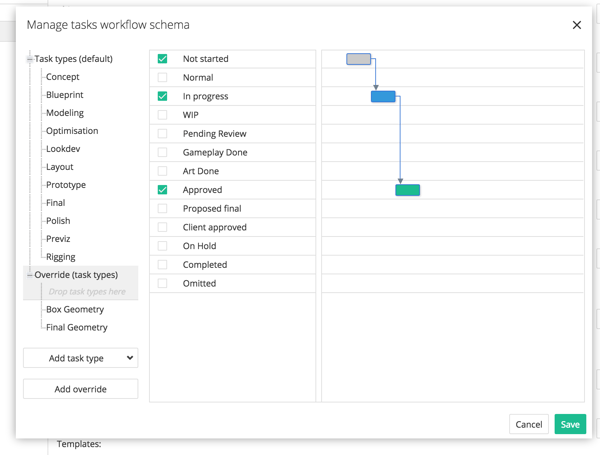

For Box Geometry and Final Geometry we will override the Approval process and just use Not Started, In Progress and Approved. Click on “Add override” and drag Box Geometry and Final Geometry to the new group. Click on the group and select your Statuses.

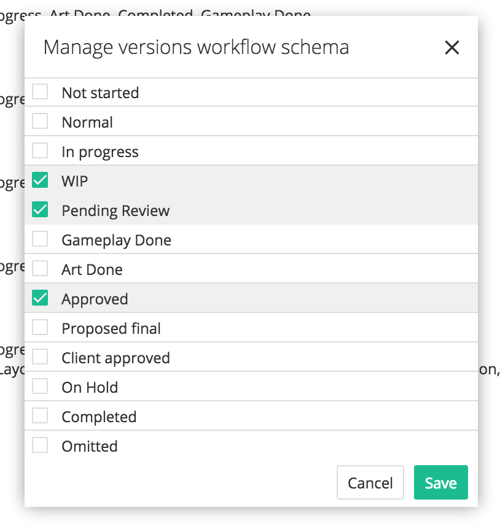

Finally, add Statuses to Version and Milestones.

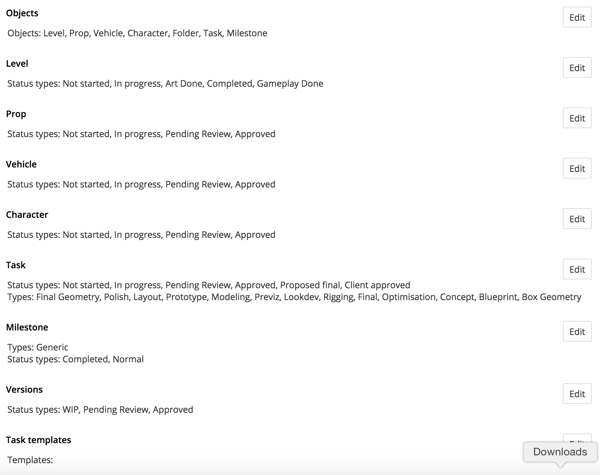

That’s it: we now have the basis for our workflow, enabling us to work in a manner tailored towards the video game pipeline. We also have descriptive icons, the correct statuses on each entity, familiar task types and more.





  Create a task template

To make our workflow even more streamlined, we can create a few Task Templates that are easy to drop in when creating projects.
Click Edit next to Task Templates.

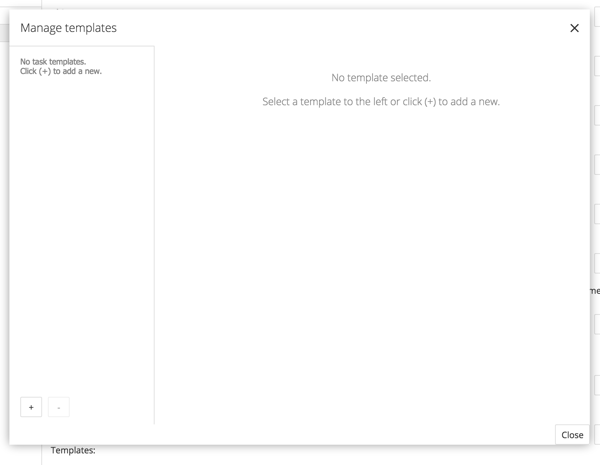

Click on the + to add a new Task template.

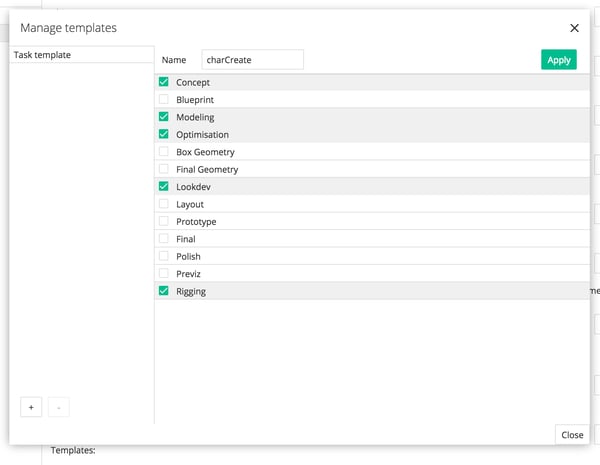

Select your task types for the charCreate Task template.



Do the same for the Art and Gameplay Task template as well.

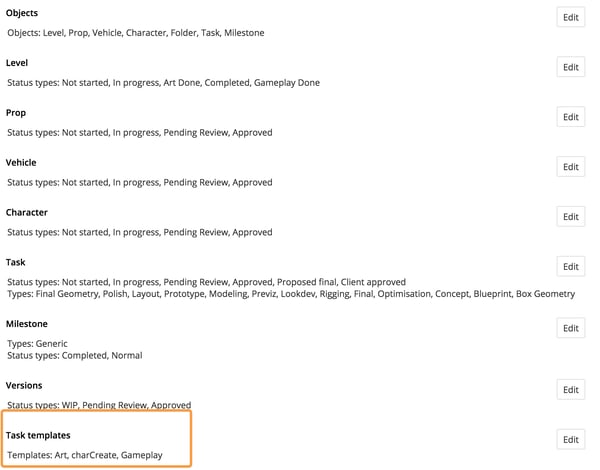

That’s it: you now have three easily accessible Task templates to help with creating your project.



 Create a custom attribute

Another powerful feature in ftrack is the ability to link Custom attributes to your entities. For example, on the Character entity you may want to add an attribute called Complexity, with the possible values of Easy, Medium and Hard.
Click on Custom attributes under Advanced.

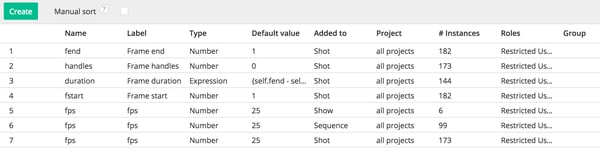

Here you will find the existing Custom attributes.



Click on Create to add a new Custom attribute. Learn more about creating Custom Attributes.

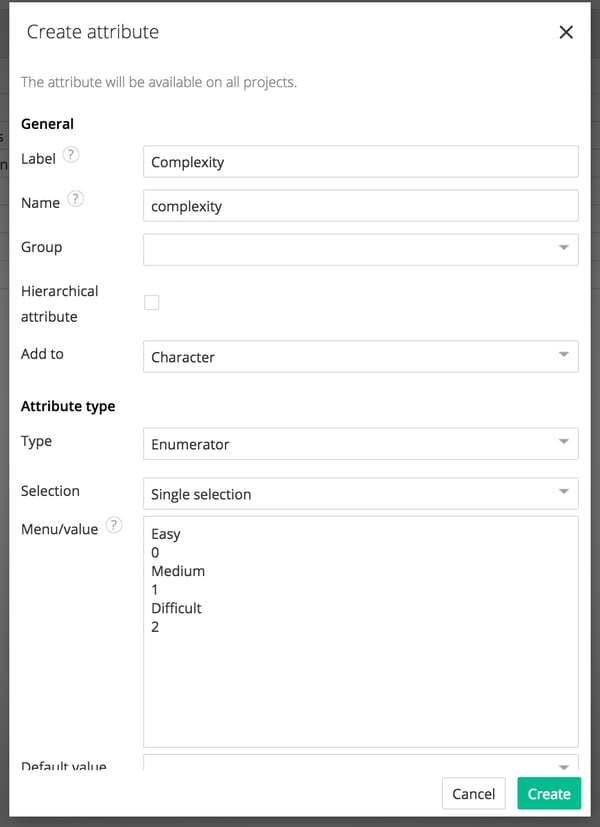

Create a new enumerator attribute called Complexity and link it to the entity Character. Select Single selection and add the values Easy, Medium and Difficult to the enumerator. You can also manage permissions for your Custom attribute, but for purposes of clarity we won’t go into that here.

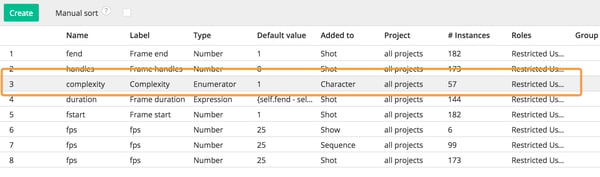

That’s it: you have now linked a Custom attribute to your new entity. When creating new instances of this entity, you can also specify the complexity.



You can also add Custom attributes per project rather than a global attribute. Learn more.



 See it in Action

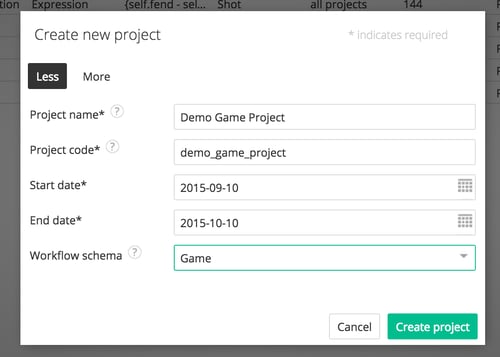

Next, we’ll discuss how to create a project to see your new custom workflow in action. To begin, select Game workflow.



Below you can see that we have created a simple layout/hierarchy that contains the task templates that we created earlier.

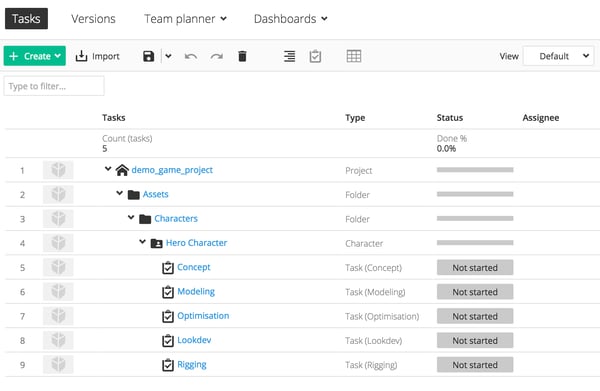

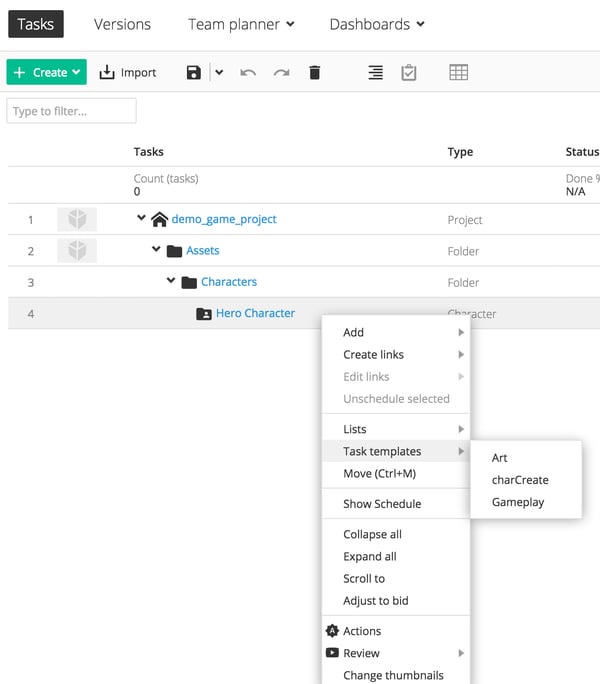

In the image below, you can see that we have added one of our custom task templates.

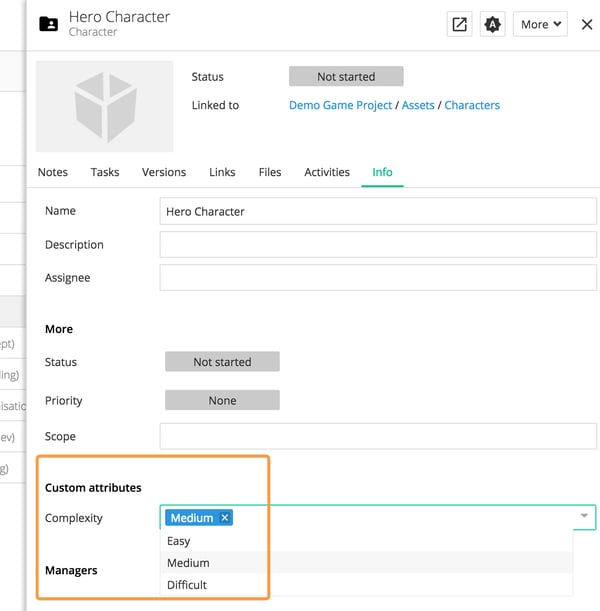

If you wish, you can set the custom attribute complexity that we created in the earlier steps.

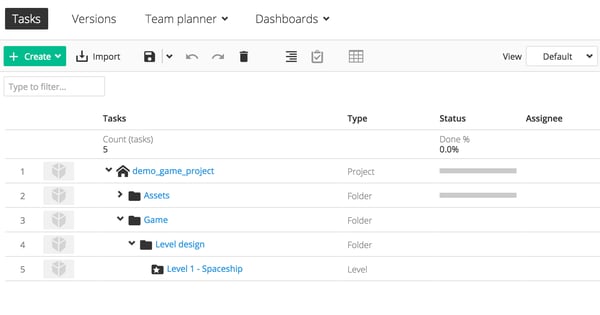

You can also create a Level entity in the project, to help further define your workflow.

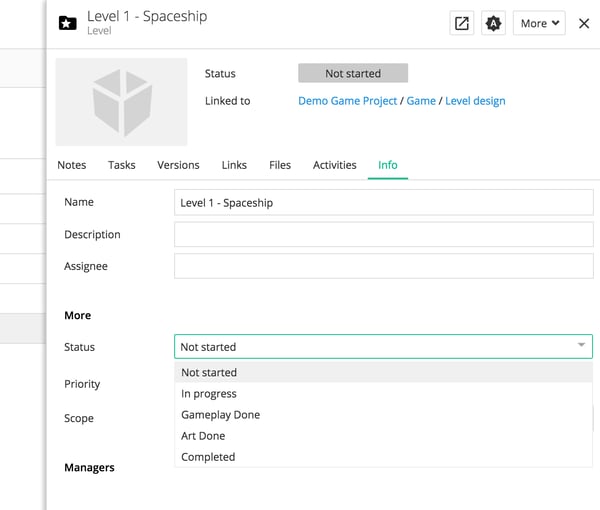

You can also set the unique statuses for the Level entity.

This makes for a much deeper and customised workflow, directly created bespoke for the video game development process. Using this workflow, you can tackle any video game project in a much simpler and more intuitive manner. Ftrack has tailored itself to workflow, rather than vice versa.
